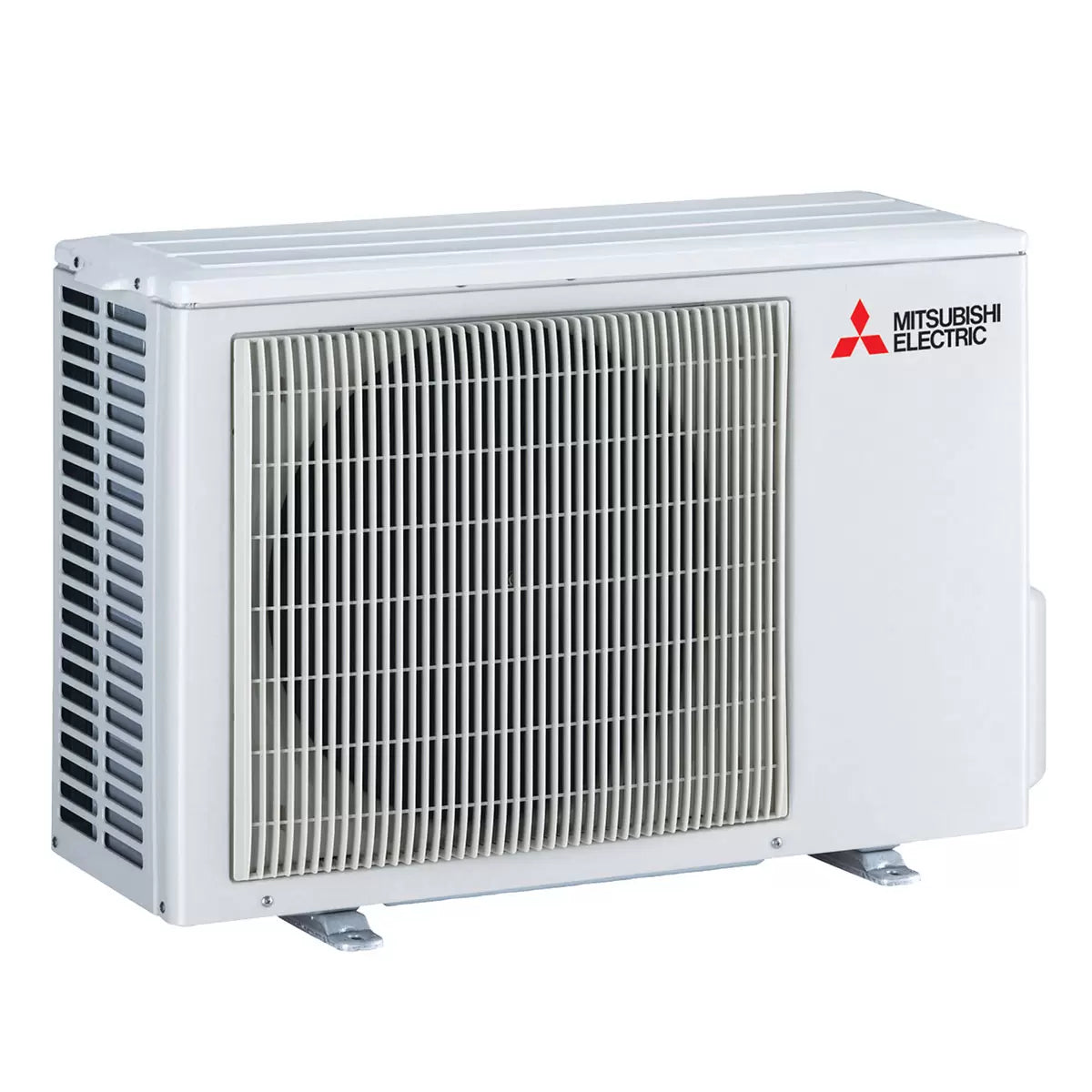

Installed Mitsubishi Premium Single Split Air Conditioning Unit Residential Use

Installation Guide

• DataSheet

Whats Included

• Mitsubishi MSZ-LN R32 air conditioning system
• Virtual survey
• Installation by a fully qualified F-Gas engineer
• 5-year parts warranty
• 10m of copper and cable
• Additional R32 refrigerant (where going over 7.5m)
• Condensate pumps included where required.
• Anti vibration blocks or wall brackets for outdoor unit installation

Available in 2.5kW, 3.5kW, 5.0kW and 6.0kW

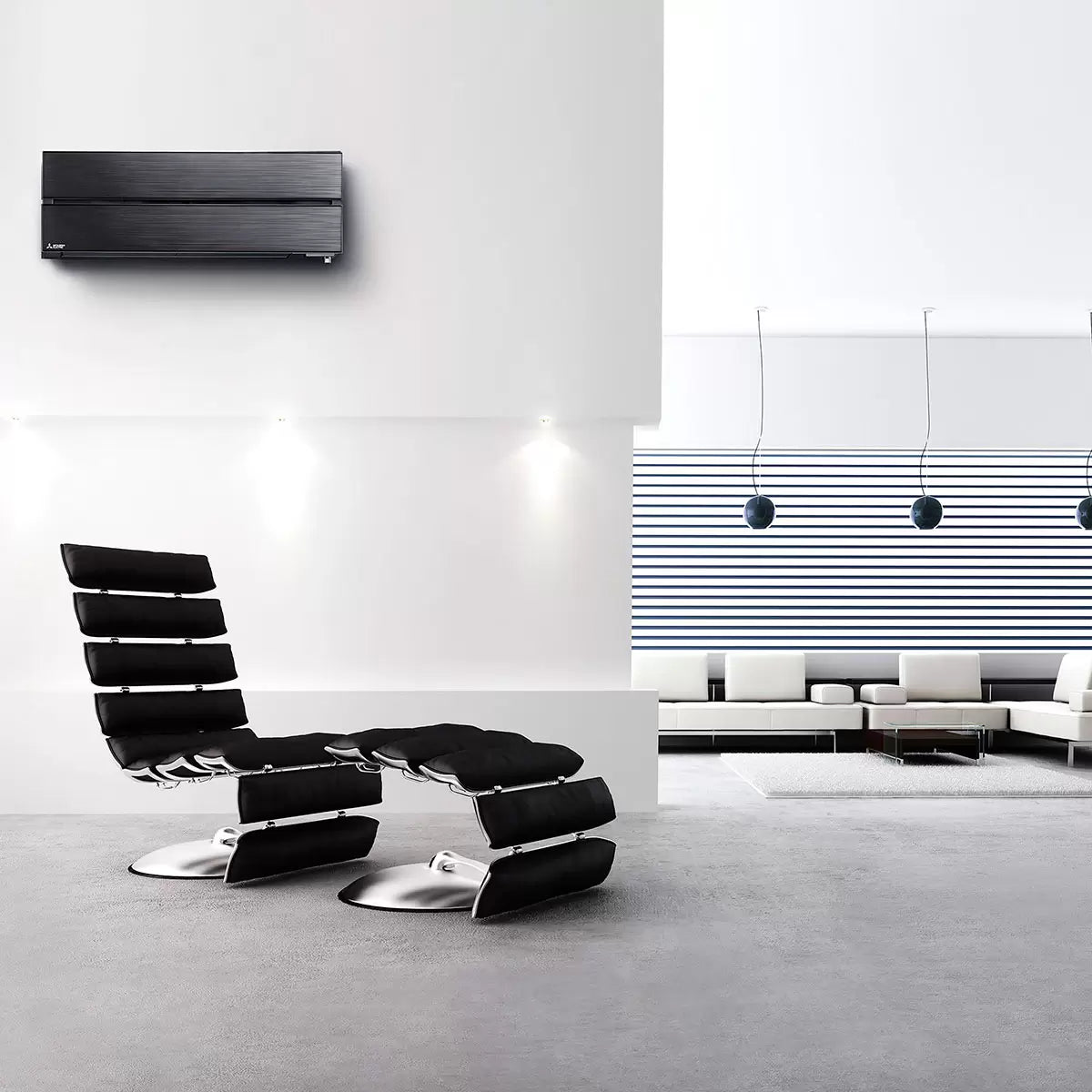

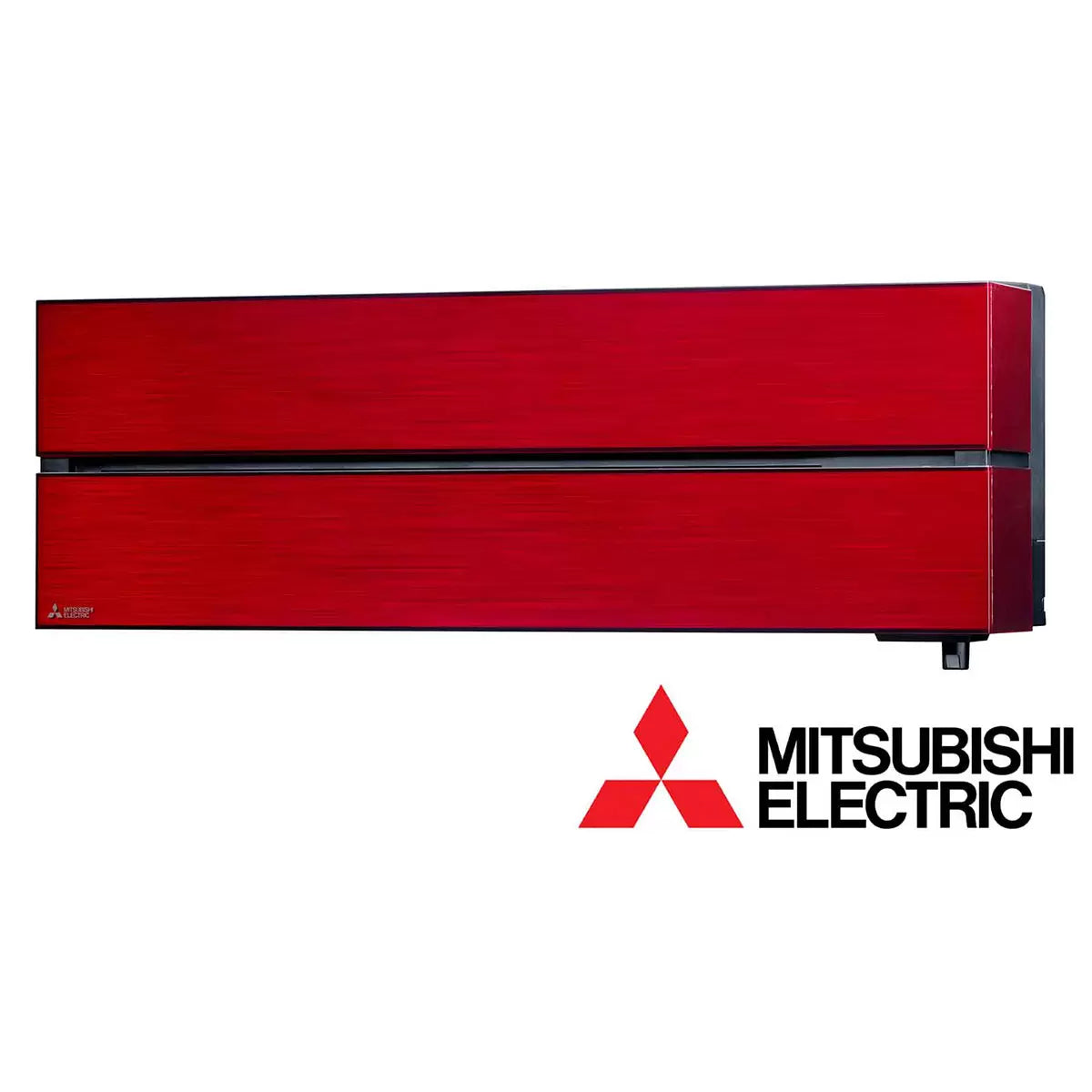

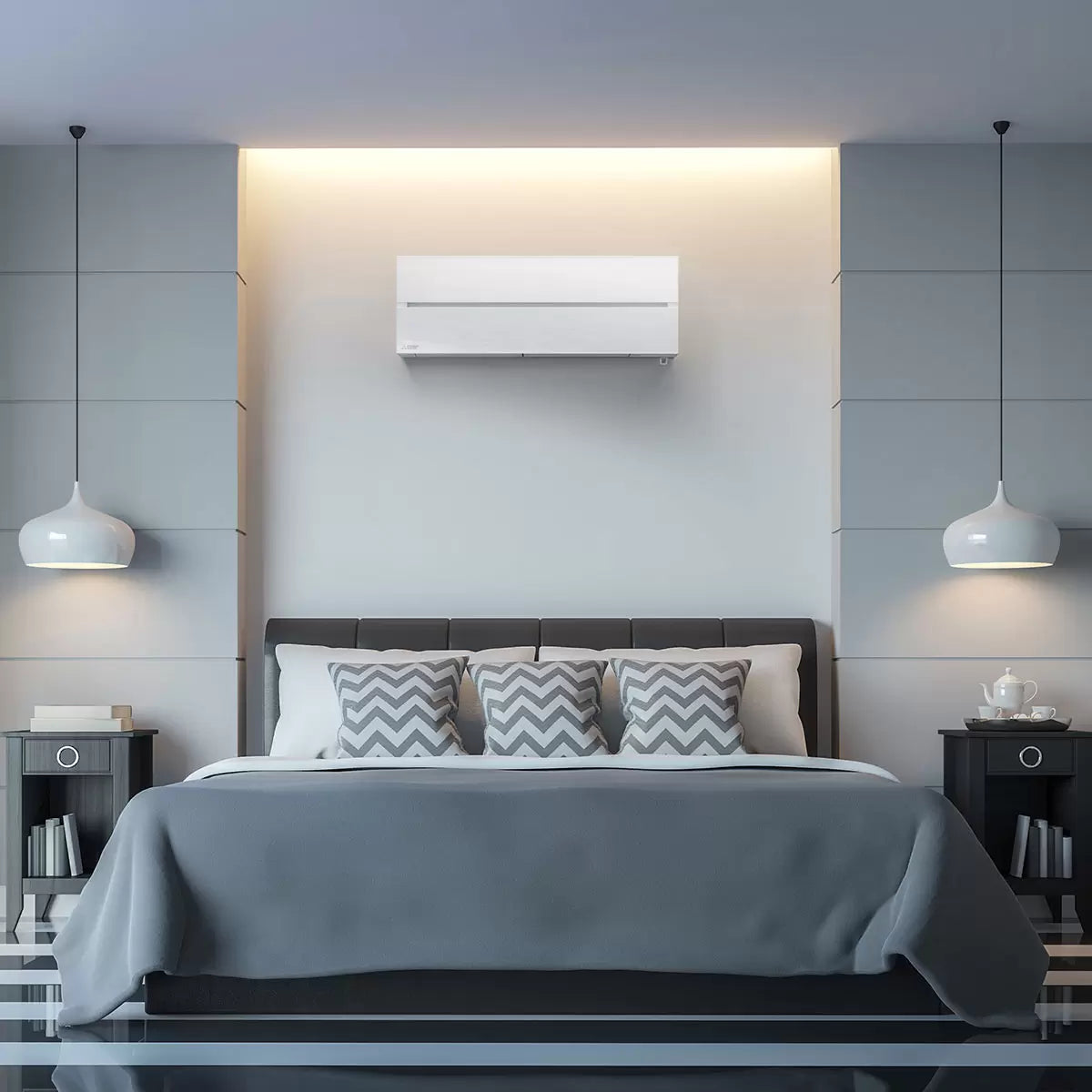

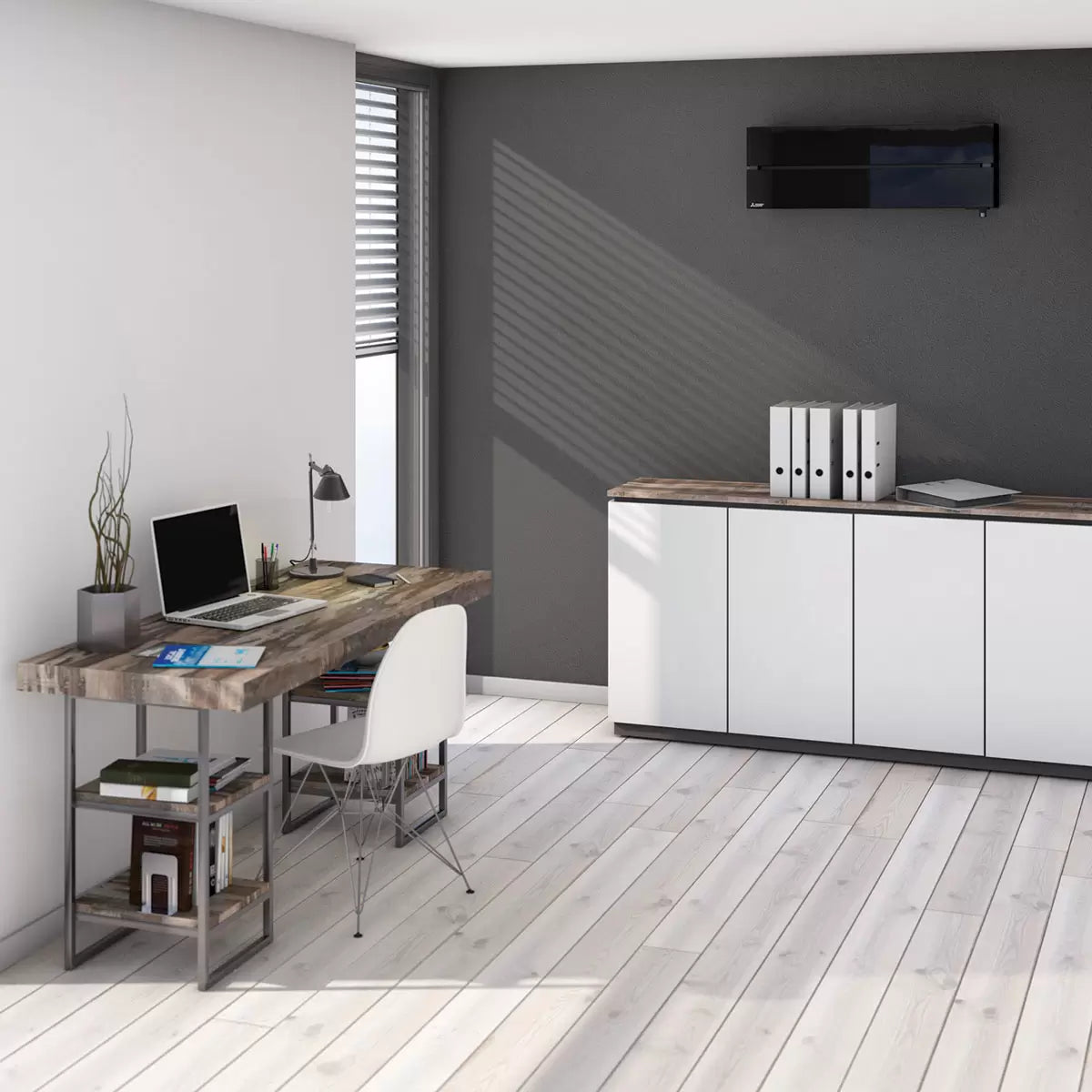

Colours Available Natural White, Pearl White, Black and Red. Colour is chosen during site survey.

Please note

• A dedicated power supply is required prior to installation, this should terminate at a weatherproof rotary isolator within one metre and preferably to the right of the desired location of the outdoor unit. This will need to be done by a qualified electrician and is not included in this package.

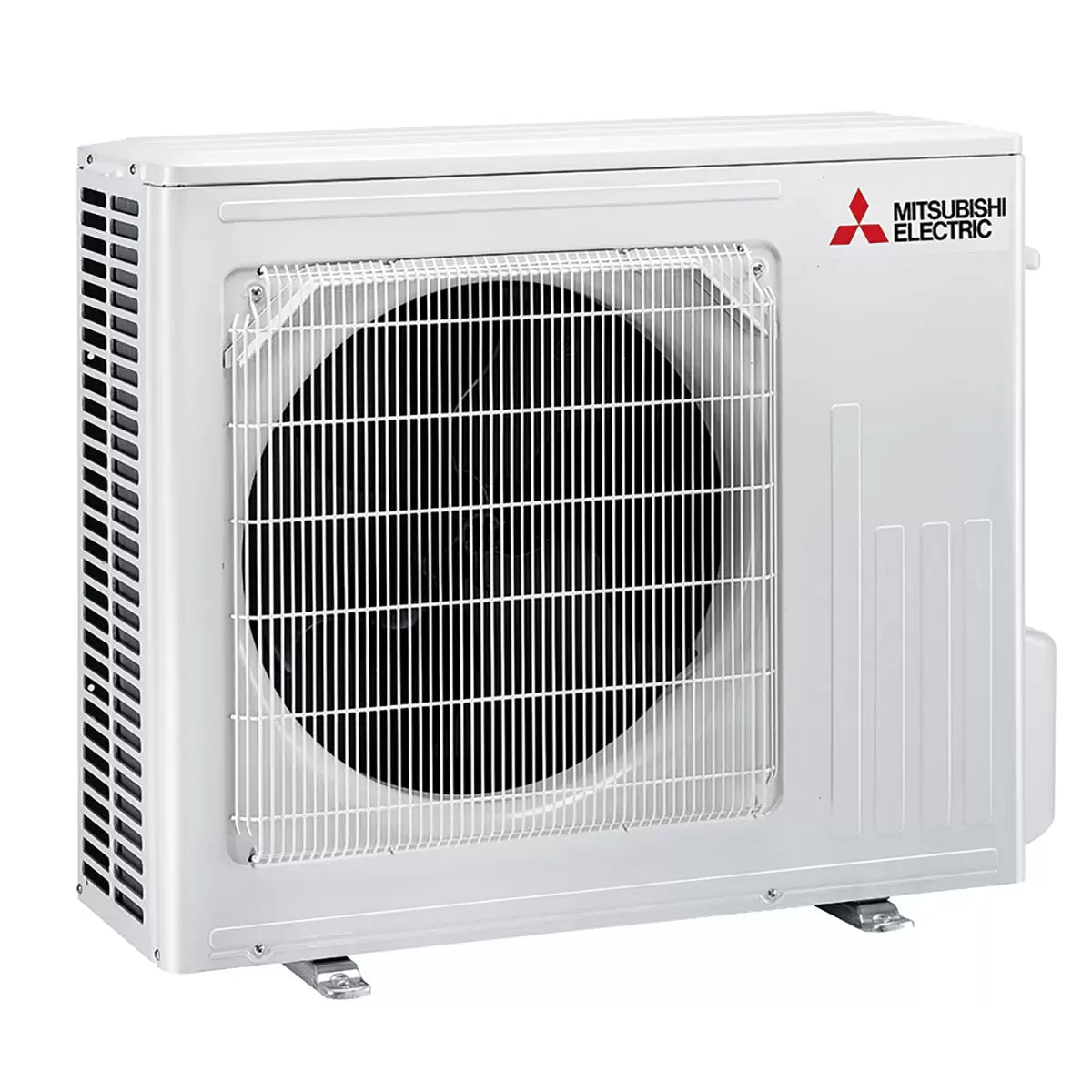

• Please allow a 10cm space behind and to the side of the outdoor unit. Please allow for 100cm space to the front of the outdoor unit.
• The outdoor unit can be sited on rubber blocks at ground level or on brackets at a maximum height of 3 metres. Rubber blocks or brackets are supplied where required, within this package.
• The indoor and outdoor units must be within 10 metres of each other.
• This package does not include removal of old systems or existing pipework. This will need to be done before delivery.
